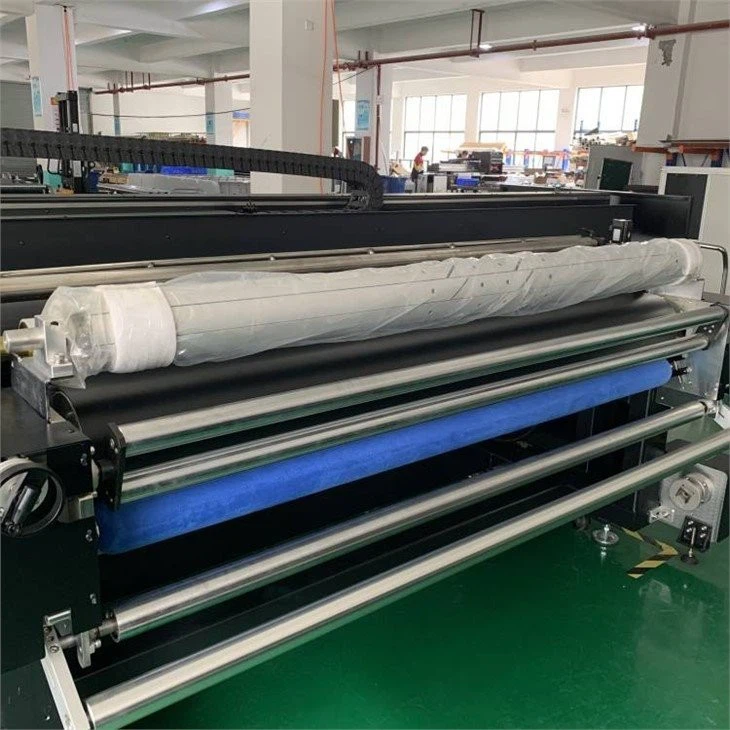

Custom Fabric Printer
1.8m, 2.6m and 3.2m width options: to meet the different requirements of the printing width in the field of fashion and home textiles
Professional belt fabric conveying system: it can convey fabric without tension, suitable for elastic fabric and non-elastic fabric;
Original automatic ink scraping system, no damage to the print head
Conductor belt automatic washing and drying system:
Guide belt guide system
Media unwinding system, automatic constant tension unwinding and rewinding system, efficient and stable wrinkle removal technology;
Drying system: multi-tube infrared medium-wave heater, instant drying of cloth, printing and drying, linkage control mode, high efficiency and stability, easy operation, optional independent drying system
|
Product mode |
YSR1816 |
||
|
Print head |
8pcs Ricoh Gen6 print head |
||
|
Fabric conveyance mode |
Adhesive belt with cleaning and heating system |
||
|
Maximum medium width |
1850mm |
||
|
Production speed |
Gen5 E |
2 pass:330m2/h |
|
|
Print software |
Neostampa / Texprint |
||
|
Ink Type |
reactive , disperse or acid ink,pigment（8 color) |
||
|
Power voltage |
380V,3L+N+G(with independent reliable effective earth wire) |
||
|
Power consumption |
printer 15kw, electric dyer 20kw(steam dryer 4kw) |
||
|
Workshop condition |
Temperature:20-30℃,humidity:55-65% |
||
|
Measurement(with wooden case) |
Printer |
4700*2200*1950mm (L* W* H) |
|
|
Dryer |
2300*2200*1950mm (L* W* H) |
||
|
Weight |
G.W:4800kg N.W.:4200KG |
||
